Wooden Grooved Acoustic Panels ( ESTO)

[ ESTO ]

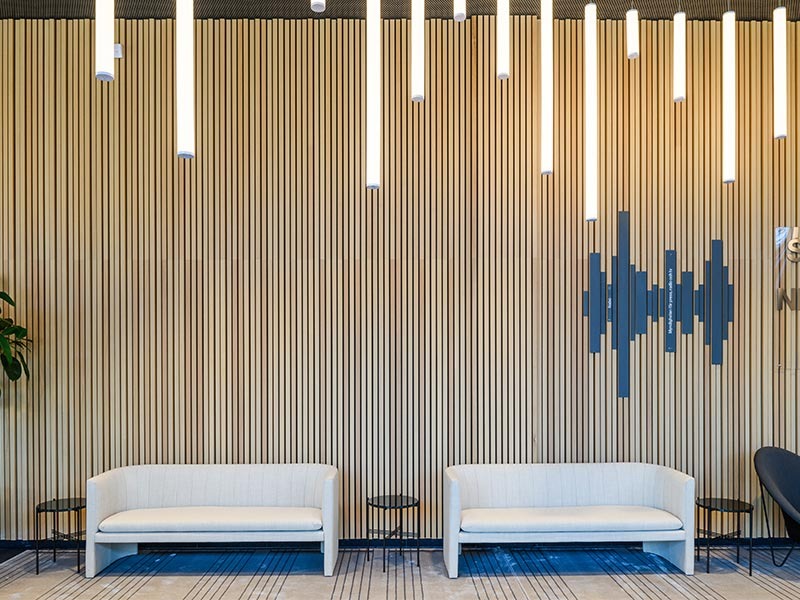

Wooden Grooved Acoustic Panels

Why

To experience the beauty of well-designed wood finish with enhanced sound clarity & reduces sound echo.

What

Wooden grooved acoustic panels will convert your ambience into a calm environment simultaneously providing an artistic look to the walls.

Where

Use it wherever you want aesthetic look with a beautiful ambience.

How

On plain walls with the help of special channels and clips.

Area of Application

Auditoriums, Conferences Rooms Seminar Hall, Libraries, Indoor Stadium Cinema Hall, Home Theater Studio , Study room, Pubs

Benefits

Excellent Sound absorption ( NRC 0.7-0.9 ) Available in various sizes & finish Multiple colours & pattern Easy to install

Acoustic Performance

Esto sound absorbing acoustic panel absorb 70- 90% of sound striking the surface- reducing noise within a space and reducing noise transfer between spaces

A beautiful work place giving you the opportunity to work in a serene environment will always make your inner self ecstatic. Credence grooved wood panel esto of made up of high density fibre board with minimum density of 800 Kg/m3 substrate with a laminated facing & finish with melamine balancing layer on the reverse side. These wooden slats have a special perforation pattern & pitch . The panels have fire resistance of Class I,BS 476 part 7.The edges of the panels shall be “tongued-and-grooved” to receive special clips for installation. The back of the perforated panels shall have sound absorbing non-woven acoustical fleece. The installed panel gives NRC of 0.7-0.9.

Technical Data

SIZE

133mm X 2440mm, 145mm X 2440 mm,

197mm X 2440mm, 269mm X 2440mm

THICKNESS

15mm,16 mm, 18mm

FRONT FINISH

Melamine, Natural wood veneer, Paint

BACK FINISH

Black Acoustic Fleece

NRC

0.7-0.9

GROOVED PATTERN

8-2,14-2,22-2,30-2,

5-3,13-3,17-3,21-3,

10-4,20-4,24-4,28-4,

23-5,30-5,43-5,59-5

16-2 …..etc

FIRE RETARDANT

Class I, BS 476-part 7

DENSITY

Density ≥800 kg/m3

Features

Installation

Esto acoustic wall panel can be easily installed over existing wall with aluminium extruded channel & clips.

Customization

Aesthetically stunning customize product solution

Warranty

5 years warranty for credence ESTO wall panel* * please refer to warranty dossier for warranty clauses & terms
